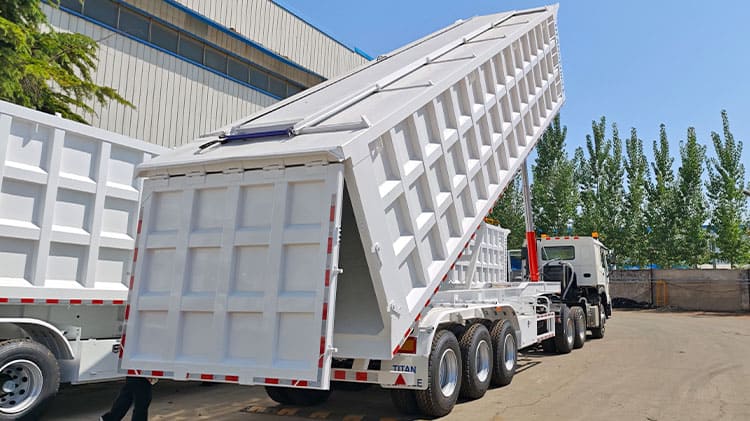

The rear door of the dump trailer for semi truck is designed to simplify the process of loading and unloading cargo, allowing for easier entry and exit of goods which directly contributes to increased operational efficiency.
To enhance both safety and load capacity during transit, the dump truck trailer is equipped with high-quality 13-ton axles. The axles not only support heavier loads but also improve the distribution of weight, which enhances overall driving stability.

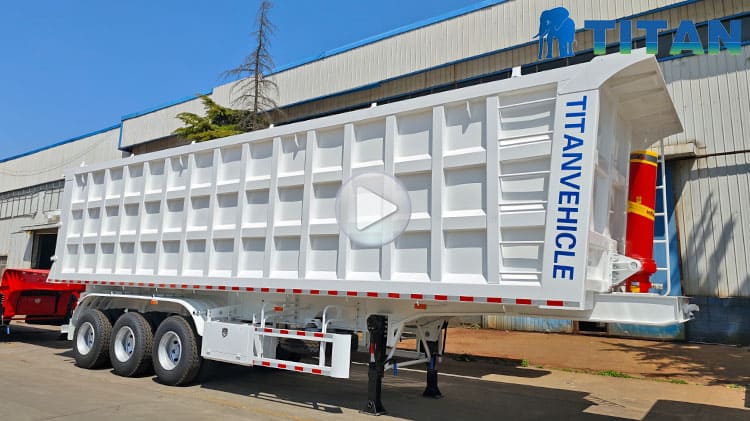

End Dump Semi Trailer Truck in Luanda Angola
End Dump Semi Trailer Truck in Luanda Angola
Interested in a end dump trailer truck? Leave a message to get up to $800 off!

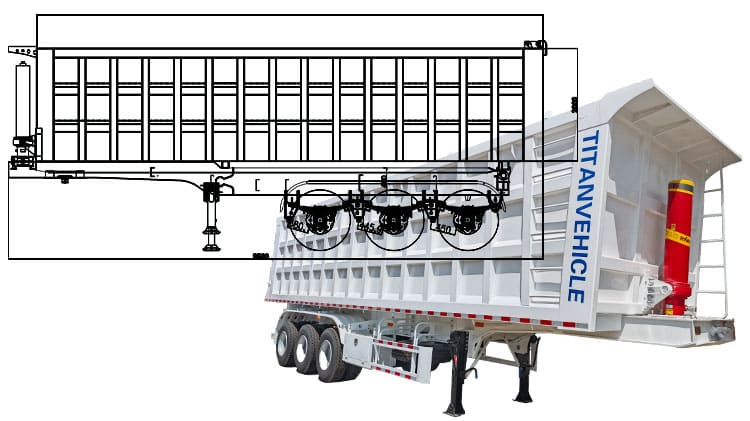

Dimension: 9000mmx2500mm x3950mm
Load Capacity: 60 ton
Volume: 35CBM
Tipping System: hydraulic cylinder
Axles: 3 axles, TITAN brand, 13ton,
Tire: 12 units, 12R22.5
Kingpin: 2.0 /3.5inch JOST brand
Landing Gear: 28 ton
Suspension: mechanical suspension
Leaf Spring: 10 layers
Lamp: LED Lamp
Interested in a end dump trailer truck? Leave a message to get up to $800 off!
Visually, the end dump is painted white. The outer surface of the semi dump trailer undergoes a powder spraying and baking paint process, a more advanced technique compared to traditional methods. Though the increases manufacturing costs, produces a brighter, more durable finish. Because of the strong adhesion, the paint finish remains intact under regular use and shows minimal wear over a five-year period.
A key structural feature is the main beam of the dump semi trailer, which is built using T700 high-strength steel. The material has better tensile and yield strength compared to ordinary steel, offering increased protection against deformation when carrying heavy or unbalanced loads.
The improved toughness of T700 steel also helps the dump truck trailer endure frequent vibrations and shocks, especially on rough roads common in places like Angola. As a result, the semi dump trailer maintains its structural reliability for a longer operational life.

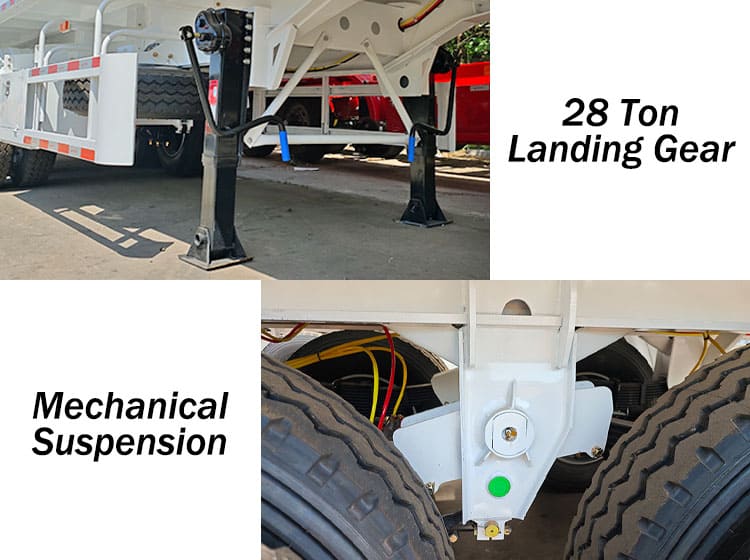

Another essential component is the landing gear, which supports the dump trailer for semi truck during loading and unloading. The landing gear system is engineered to bear the weight of various heavy materials. Additionally, the structure effectively spreads pressure across the ground, minimizing the risk of sinking on soft surfaces and contributing to operational stability.
The suspension system of the end dump trailer is also reinforced for better performance which incorporates a mechanical suspension with a solid shock-absorbing function. The system can help dump truck trailer absorb road impacts, reducing stress on both the cargo and the frame during transport.

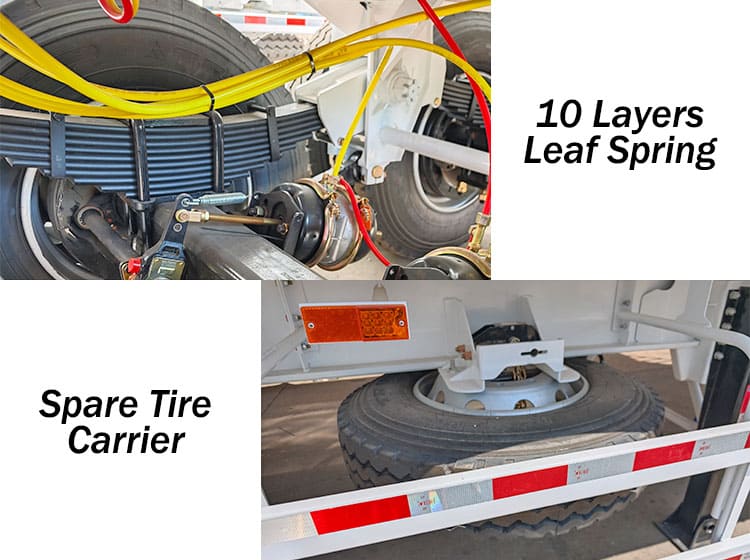

The use of a 70mm diameter center balance pin stabilizes the suspension and decreases tire wear caused by vibrations. Moreover, the 10-layer thick leaf spring design enhances the dump semi trailer ability to withstand harsh vibrations and road shocks.
The lighting system has also been significantly upgraded. The dump trailer for semi truck now comes with LED lights, which offer brighter illumination than traditional lighting systems. The lights enhance visibility during night driving or in low-light conditions, improving safety. Additionally, LED lamps are more durable and resistant, making ideal for use on gravel roads or uneven terrains in Angola.

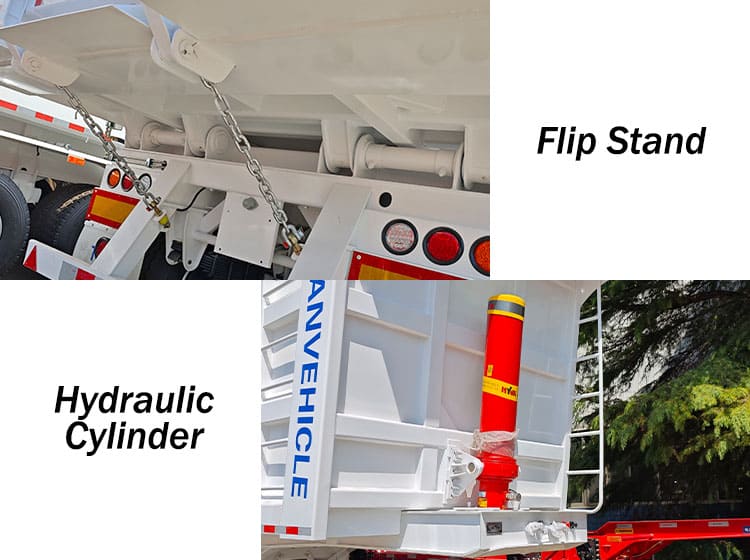

To further protect the dump truck trailer structure, four flip stands are installed. The flip stands help distribute the operational load more during transport task, thereby reducing the stress and fatigue on the end dump body.

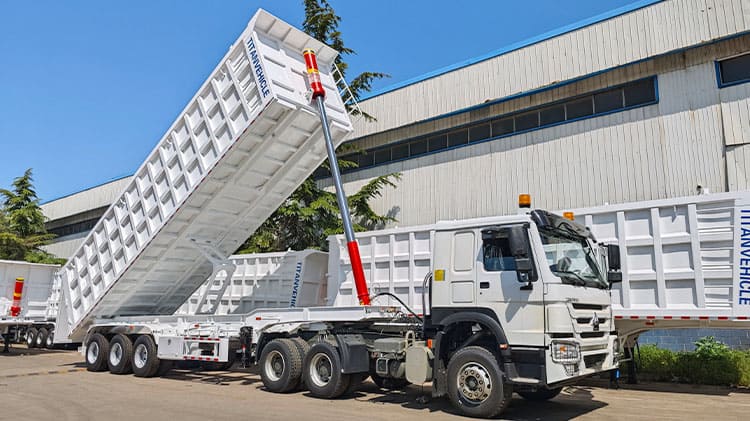

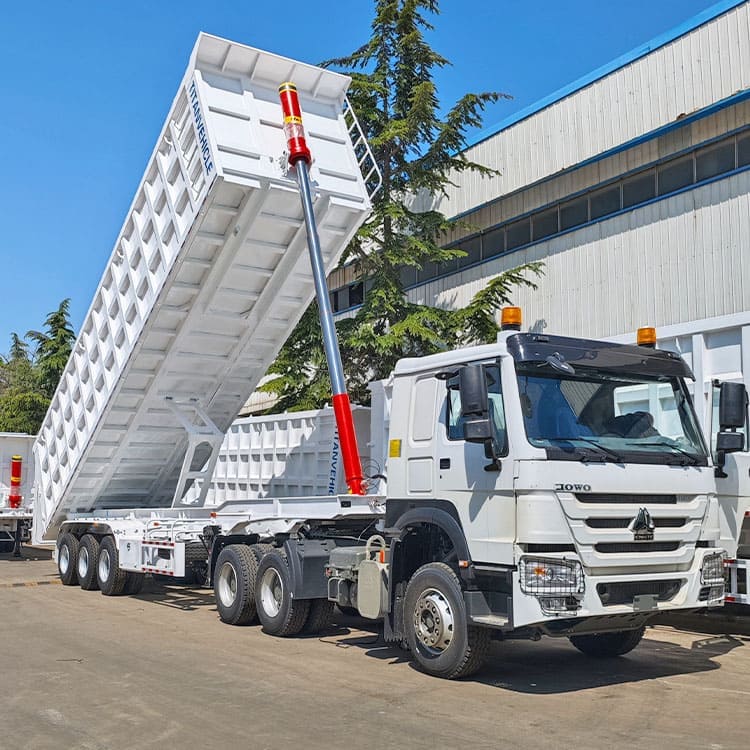

The semi dump trailer features a high-performance hydraulic lifting system. Its integrated design makes especially suitable for areas with limited working space. The setup helps lower equipment investment costs while significantly reducing the time required for loading and unloading. The hydraulic system offers reliable lifting capacity, contributing to both operational ease and productivity.
The surface of the dump trailer for semi truck is first treated with a layer of protective wax, forming a sealed barrier that effectively prevents air and moisture from reaching the metal. After the treatment, the TITAN dump truck trailer manufacturers apply a waterproof cover over the entire semi dump trailer. As a result, the 3 axle end dump trailer can retain its appearance and functional integrity upon delivery, providing a reliable starting point for subsequent use and commissioning.
