The 3 axle side wall trailer is designed to accommodate a broad spectrum of transportation requirements, including the movement of equipment, construction materials, and general cargo. The flexibility allows to handle various transport distances and adapt easily to different logistical environments.
Due to the straightforward design and practical functionality, the sidewall trailer is highly sought after by buyers in Angola. The sidewall trailer is capable of transporting diverse types of loads, including irregularly shaped objects and unpackaged bulk materials.

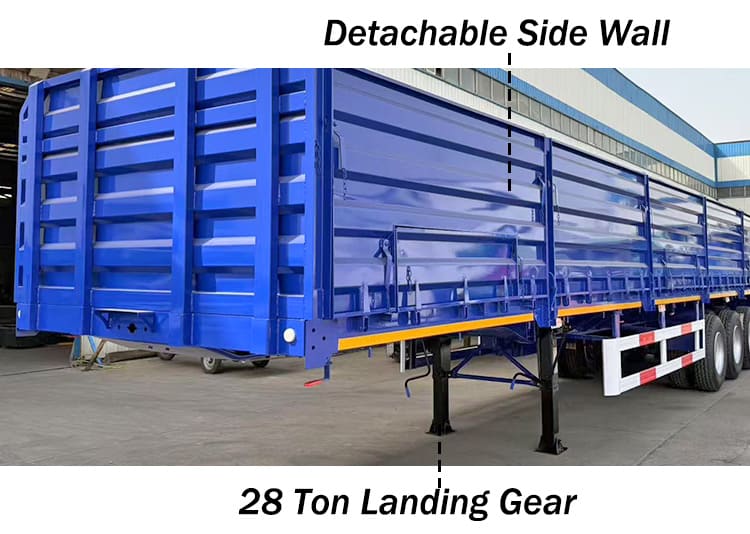

One of its notable features is the detachable side walls, which greatly improves operational versatility. Both the rear and side walls are designed to open easily, streamlining the loading and unloading process and significantly saving time.

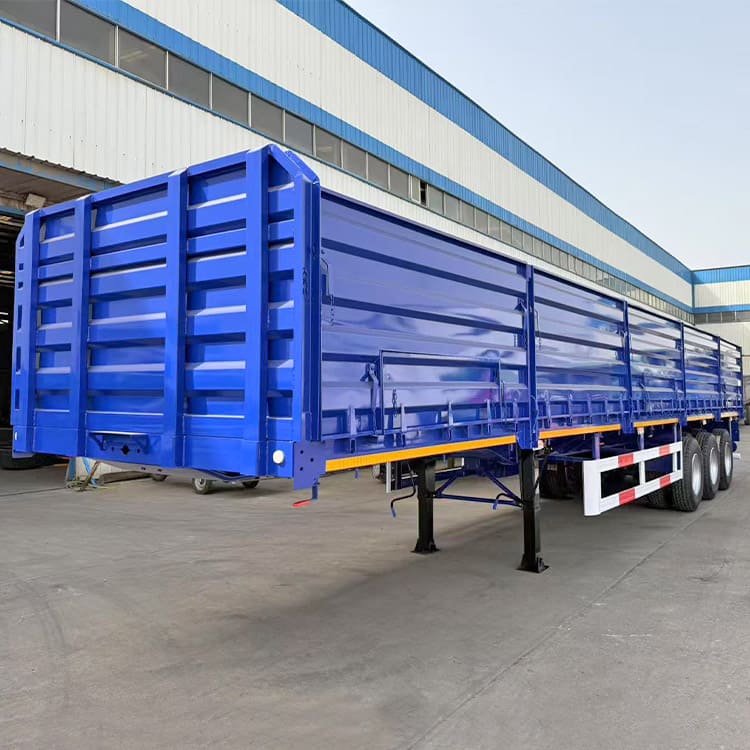

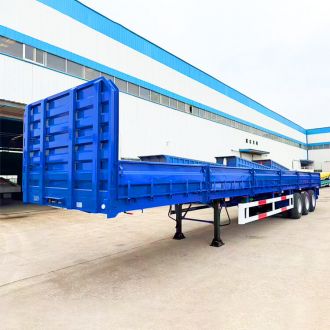

3 Axle Side Wall Trailer for Sale in Angola Luanda
3 Axle Side Wall Trailer for Sale in Angola Luanda
Interested in side wall trailer? Contact us and get a discount!
Dimension: 12500mm*2500mm*3200mm
Loading Capacity: 60 ton
Floor Plate: 3mm thick pattern plate
Axles: 3 axles, 13 ton, TITAN brand
Suspension: mechanical suspension
Leaf Spring: 10 layers
Tire: 12 units
Bumper: thickened bumper
Landing Gear: 28 ton
Lamp: LED lamp with anti-theft net
Interested in side wall trailer? Contact us and get a discount!

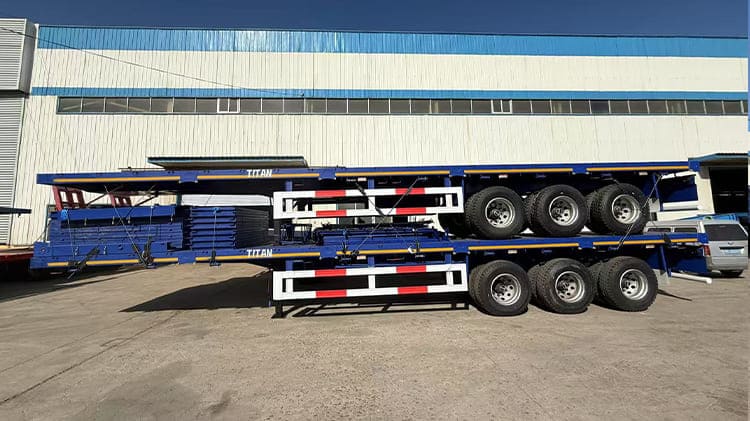

The side wall trailer can be shipped using containers or through RORO (Roll-on/Roll-off) vessels, offering flexible delivery options. Before delivery, every sidewall trailer for sale is treated with a layer of protective wax and then covered with waterproof tarpaulin. The dual layers protection serves to guard against corrosion from salt-laden sea air during maritime transport. Importantly, the level of attention to pre shipment protection is a service often overlooked by many other manufacturers.
The exterior coating of the side wall trailer is treated with an enhanced powder spray and baking painting technique, offering several advantages over traditional paint spraying. The method improves the adhesion between the paint and the surface, ensuring a more durable finish also provides superior resilience under varying climate conditions. Whether operated in a humid, rainy setting or a dry, dusty one, the side wall trailer maintains its appearance and functionality for up to five years, thereby extending the maintenance intervals and reducing long-term upkeep costs.
Equipped with a heavy-duty 13-ton axle, the sidewall trailer offers increased strength and durability. The axle is specifically designed to resist damage caused by environmental factors like gravel and sudden temperature shifts. The sidewall trailer minimizes the risk of metal fatigue and provides a more stable and long-lasting performance than traditional axle setups, which is especially valuable in rough operating conditions.
The structural frame of the side wall trailer is built to provide maximum support and reliability. The main beam is firmly connected to the cross members, creating a solid and stable framework capable of carrying significant loads. The cross members are constructed from 100mm thickened channel steel and are supported by diagonal bracing. The braces are spaced within 500mm intervals to evenly distribute weight and prevent localized deformation under heavy pressure.

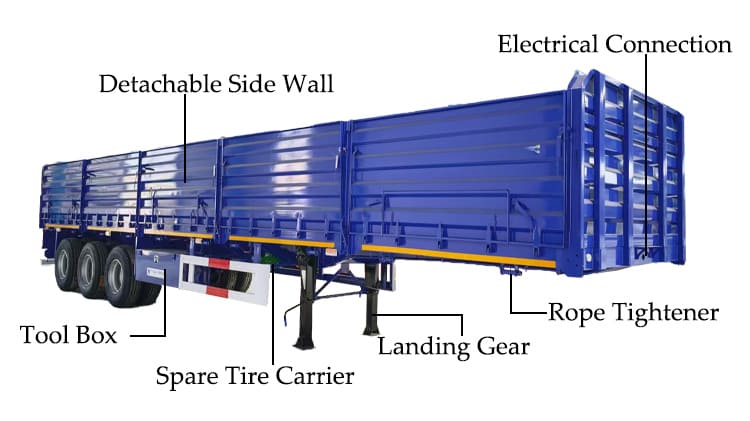

The side wall trailer also utilizes a removable sideboard configuration, which differentiates from conventional enclosed trailers. The sideboard structure reduces the overall weight while enhancing the loading and unloading flexibility. The design makes easier to manage cargo space and boosts overall efficiency.

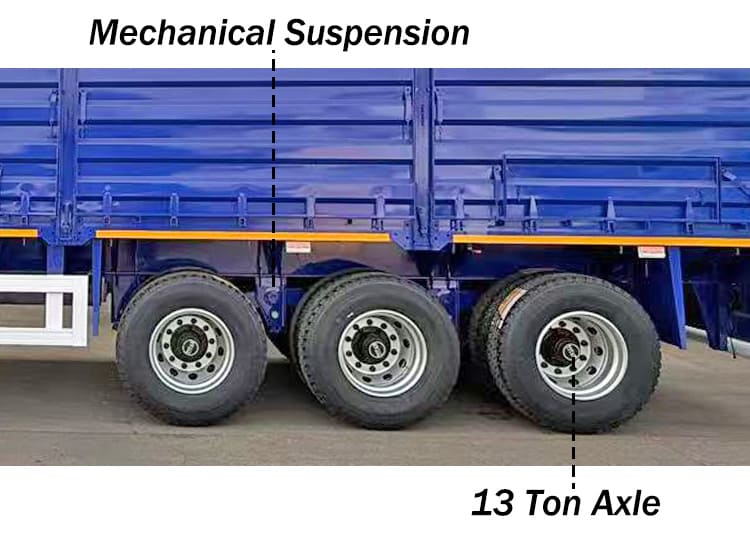

To handle challenging road conditions, the sidewall trailer features a reinforced mechanical suspension system. The suspension utilizes a leaf spring setup that effectively absorbs shocks and reduces vibrations when navigating potholes or uneven terrain in Angola. The system uses high strength steel known for its superior impact and heat resistance, ensuring stable operation even on rough roads commonly found in regions like Angola.
Supporting the side wall trailer weight and aiding in safe loading operations is a robust landing gear system. The system is engineered to support loads of up to 28 tons, offering sufficient capacity for heavy-duty tasks. The durable design simplifies side wall trailer maneuvering and enhances operational safety.
For the floor plate, TITAN uses a thickened patterned steel plate that includes anti-slip properties. The material increases surface friction, significantly reducing the risk of cargo slippage during transport. Additionally, the reinforced flooring adds strength and extends the overall lifespan, making a more reliable option for consistent use.

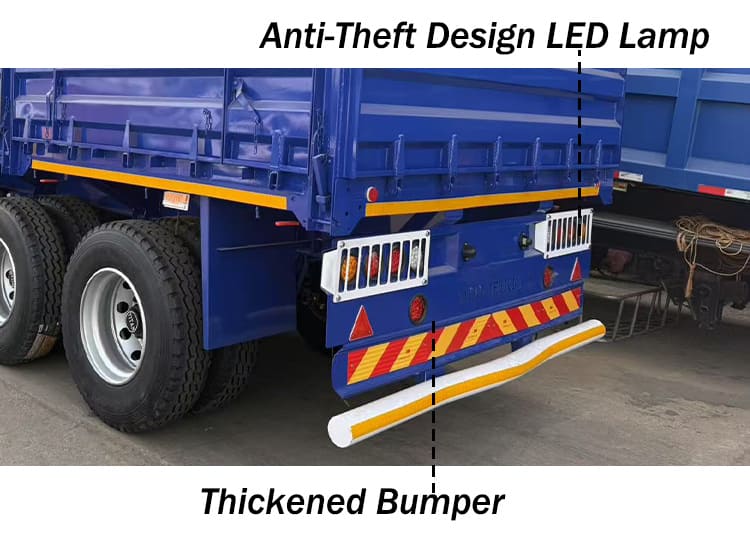

To promote road safety, especially during night operations or in low-light environments, the sidewall trailer is fitted with high-visibility reflective strips. The strips effectively bounce back surrounding light, alerting nearby drivers and pedestrians. Complementing this feature are LED lights installed on the side wall trailer. The lights offer high brightness with lower energy consumption, which not only ensures visibility but also reduces the strain on the sidewall trailer electrical system and contributes to cost savings.
